Tongji automatic production line toilet bar soap making machine other chemical equipment

FOB Reference Price:Get Latest Price
$50,000.00 - $400,000.00 / Set | 1.0 Set/Sets (Min. Order)
Model Number:
300-5000kg/h
Shipping:
Support Sea freight · Land freight · Air freight
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 >5
Est. Time(days) 60 75 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
TONGJI
Product Type:
Soap
Condition:
New
Showroom Location:
Thailand, South Korea, Japan, Malaysia
Warranty:
1 YEAR
After-sales Service Provided:
Field installation, commissioning and training
Key Selling Points:
Easy to Operate
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Applicable Industries:
Manufacturing Plant
Machine Type:
Fully Automatic Production Line
Application:
soap making
Capacity:
300-5000 Kg/h
Material:
Stainless Steel
Certificate:
ISO9001:2008 ; CE
Type:
all kinds Soap Making Machine
Raw Material:
soap noodles
Supply Ability
Supply Ability:
10.0 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden package
Port
nantong port,china
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 >5
Est. Time(days) 60 75 To be negotiated
Video Description
Product Description

Tongji automatic toilet and laundry bar soap making machine production line

For making palm oil hotel soap,transparent green laundry bar soap,Herbal olive oil soap etc.

A.We can provide laundry and toilet soap making finishing line from soap noodles:
1. Laboratory soap machine ( the capacity is no more than 100kg/h)
2.100kg/h or 150kg/h soap machine
3.300kg/h, 500kg/h,1000kg/h,2000kg/h,3000kg/h,4000kg/h,5000kg/h soap making finishing line

B. We can also make soap noodles from oil (saponification process & vacuum drying process)


It's better to let us know first :
1. The product is toilet soap or laundry soap?
2. What is your capacity ? kg/h ?
3. The raw material : oil or soap noodles?

we could according to your capacity and soap quality requirements to offer you best solution .

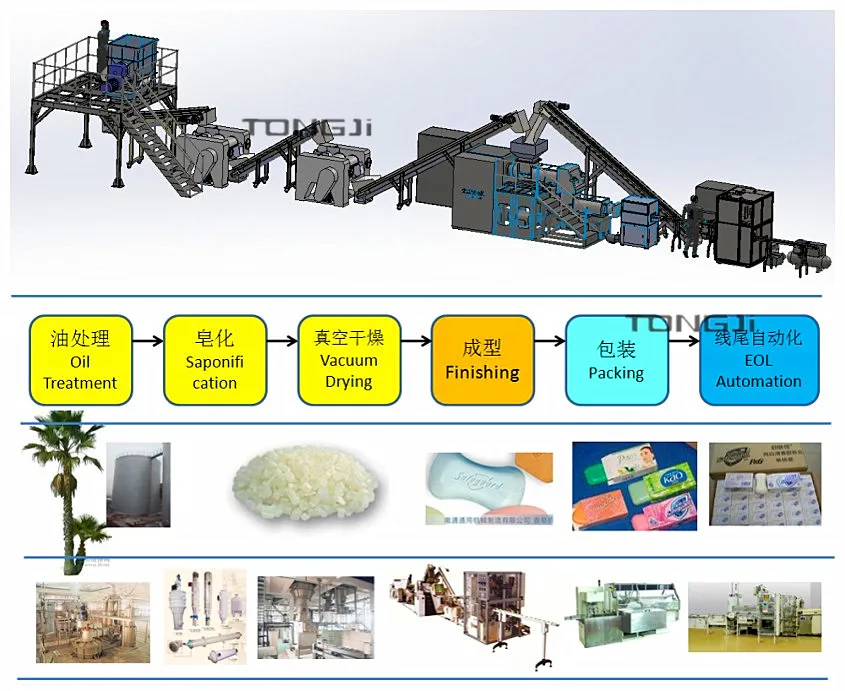

Main machines for soap making production line

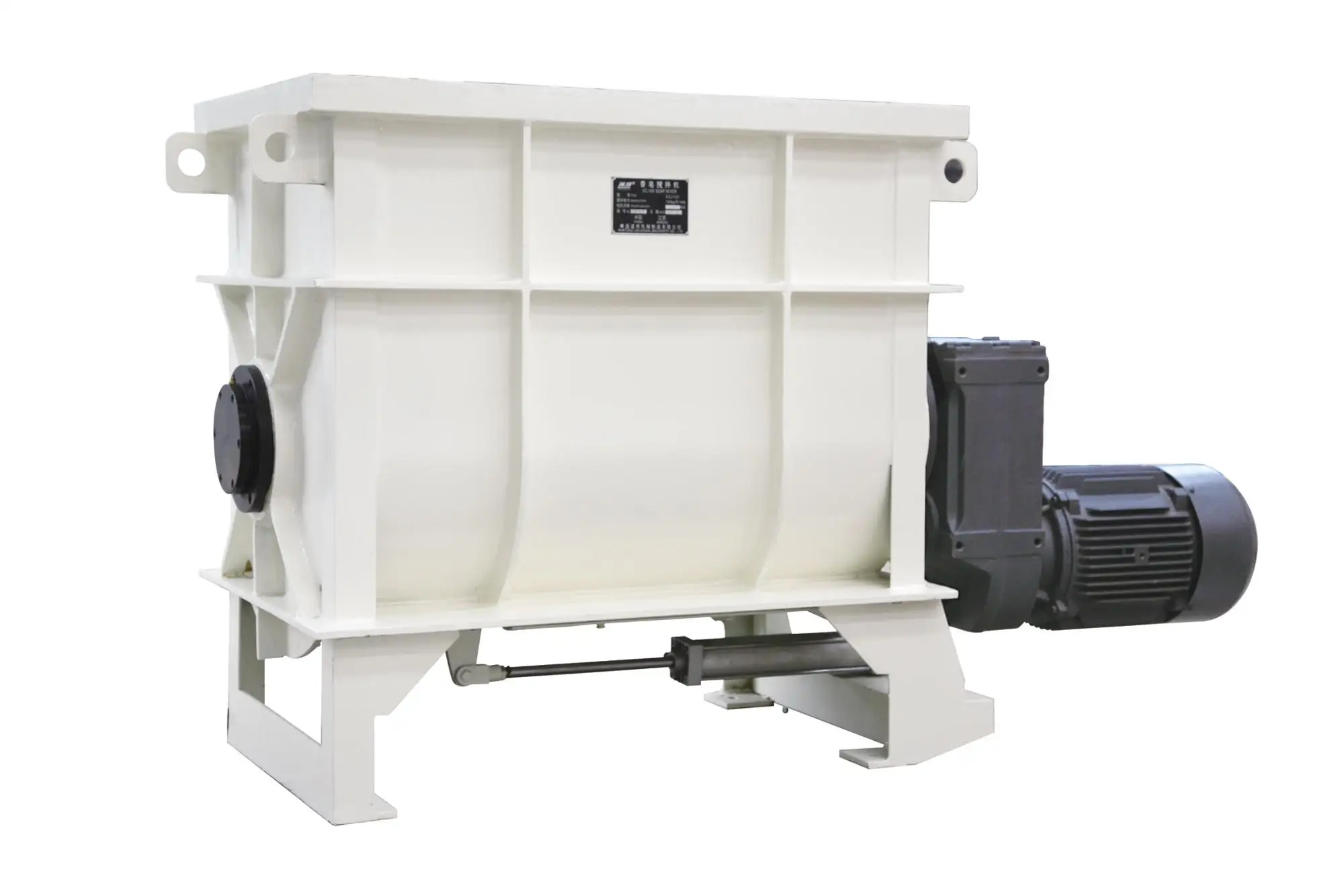

soap mixer



Other parts:
* Conveyors
* Platform and Utilities
* Moulds for Embossing Cutter & stamper
three roll mill
soap refiner
soap plodder
soap cutting machine
soap stamper
Tsingle shaft two blade type paddle,it is driven by the motor through the gear box and rotates continuously to mix soap noodls,flakes and liquid or solid additives..

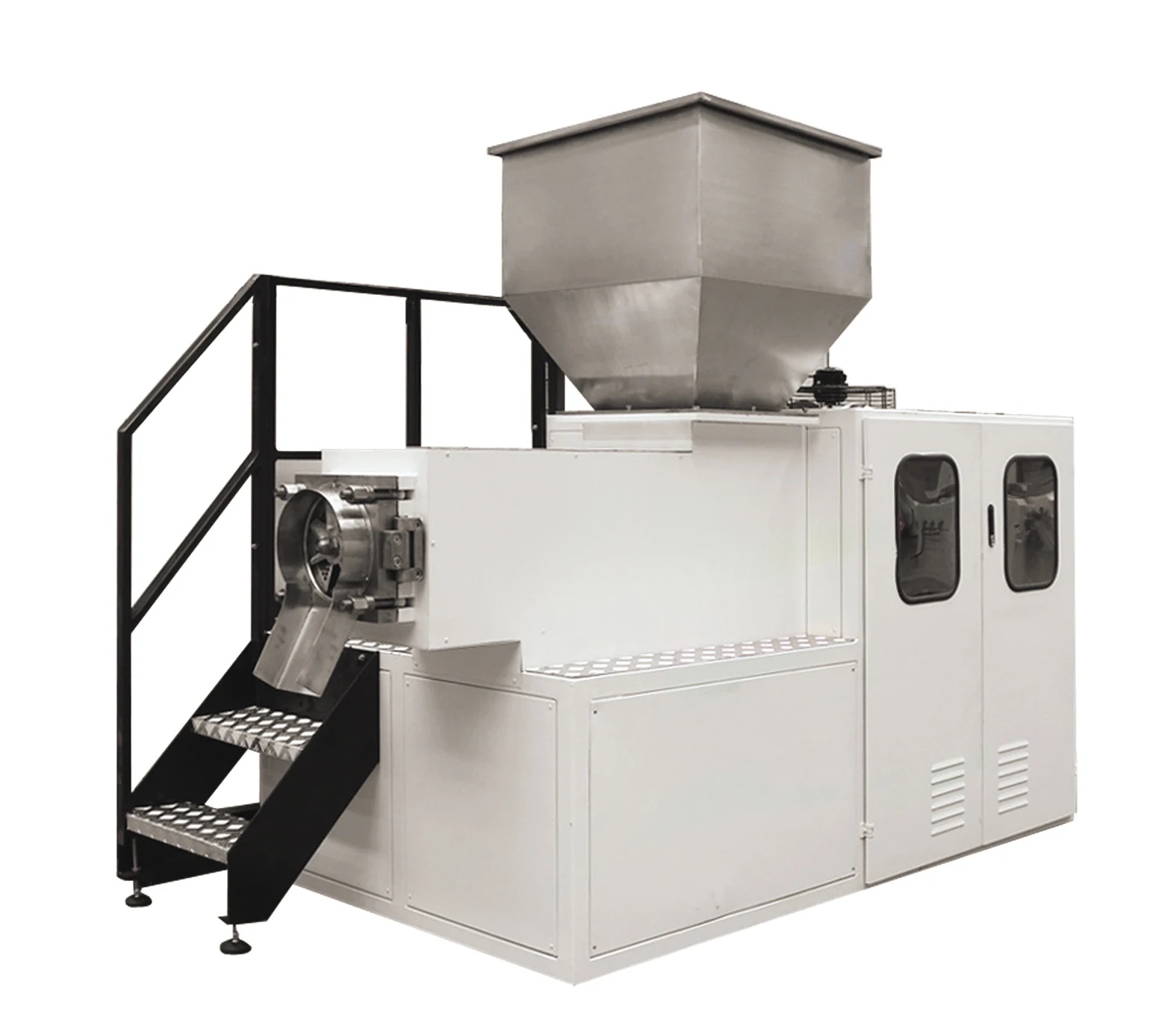

Refiner
The simplex refiner is designed to operate as a refiner/pelletizer. It is used to squeeze and grind the soap base for refining effects and transfrom the soap base into soap pellets.
It is equipped with all-hard-teeth precisely-grinded gear reducer. The screw is made of high quality stainless steel or aluminum alloy, which is strong corrosion-resistant and durable for long production. All other parts which are in contact with the soap are made of high quality stainless steel.
The prodution capacity can be adjusted by the VFD or the electomagnetic spped regulation motor.
Three roll mill
This 3-roll mill is used for soap refining. The three rolls are horizontally mounted, rotating at different speeds. The refining fuction is achieved by pressing and squeezing force between the rolls. The main body is made of high quality steel structure, strong and stable. All gears are precisely manufactured and immerged in oil with long life time. It is of low noise, wear resistance, and high reliability. Rolls are made of special cast alloy, which is highly anti-wearing,(if customer requires, we can choose SS420 material) and fitted with cooling system. Gaps between rolls are adjusted easily to achieve different refining effects and production capacity needs.

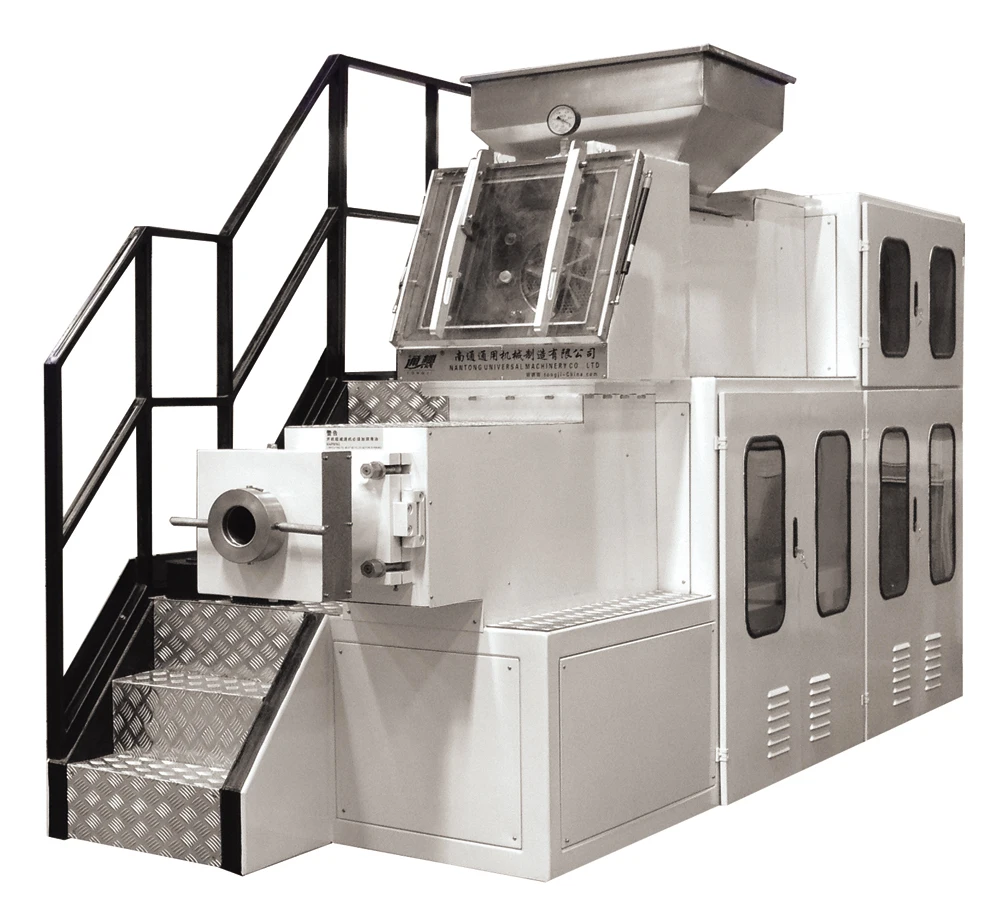

Plodder
This machine has two stages,driven by independent transmission system,and each stage has double screws which has large output capicity,All gears are precisely manufactured.The screws are made of high quality stainless steel or aluminum alloy,which are strong corrosion-resistant and durable for long production.The inner roller body is made of stainless steel seamless pipe,preventing any laekage,All other parts which are in contact with the soap are made of high quality stainless steel.The production capacity can be adjusted according to different production speed needs by the VFD or the electromagnetic speed regulation motor.

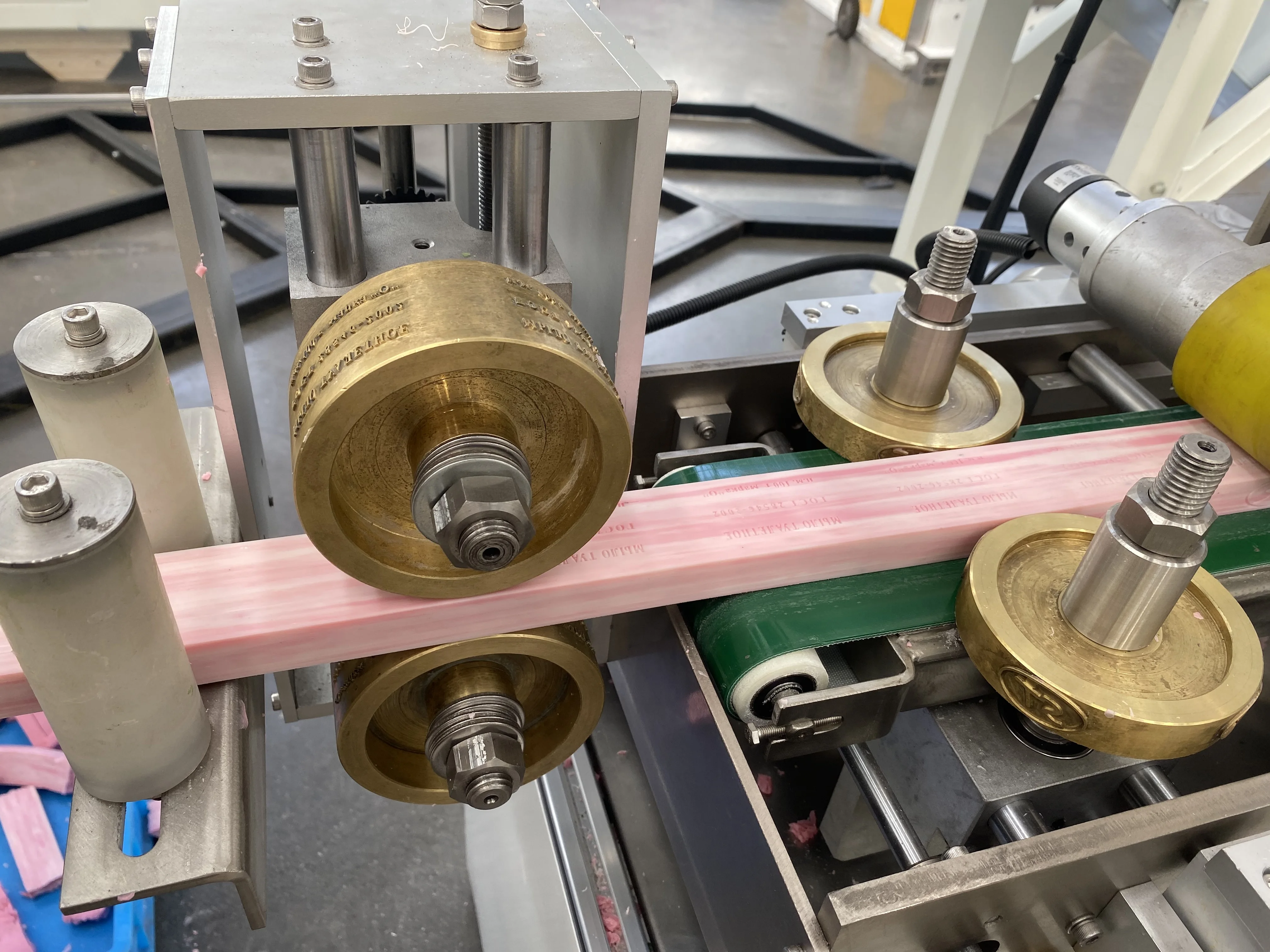

Cutter
This machine can emboss and cut all kinds of toilet soap and laundry soap,fast and accurate.For toilet soap production,this machine will cut the soap billets from the plodder into long bars into the downstream stamper. For the laundry soap production,a complete set of embossing mechanism can be installed at the front so that the machine can emboss and cut the soaps at the same time to product finished product for downstream packaging.This machine's control system uses world famous brand PLC,touch screen,servo,encoder, etc, and with the cam system to make the machine running accurately and reliably.

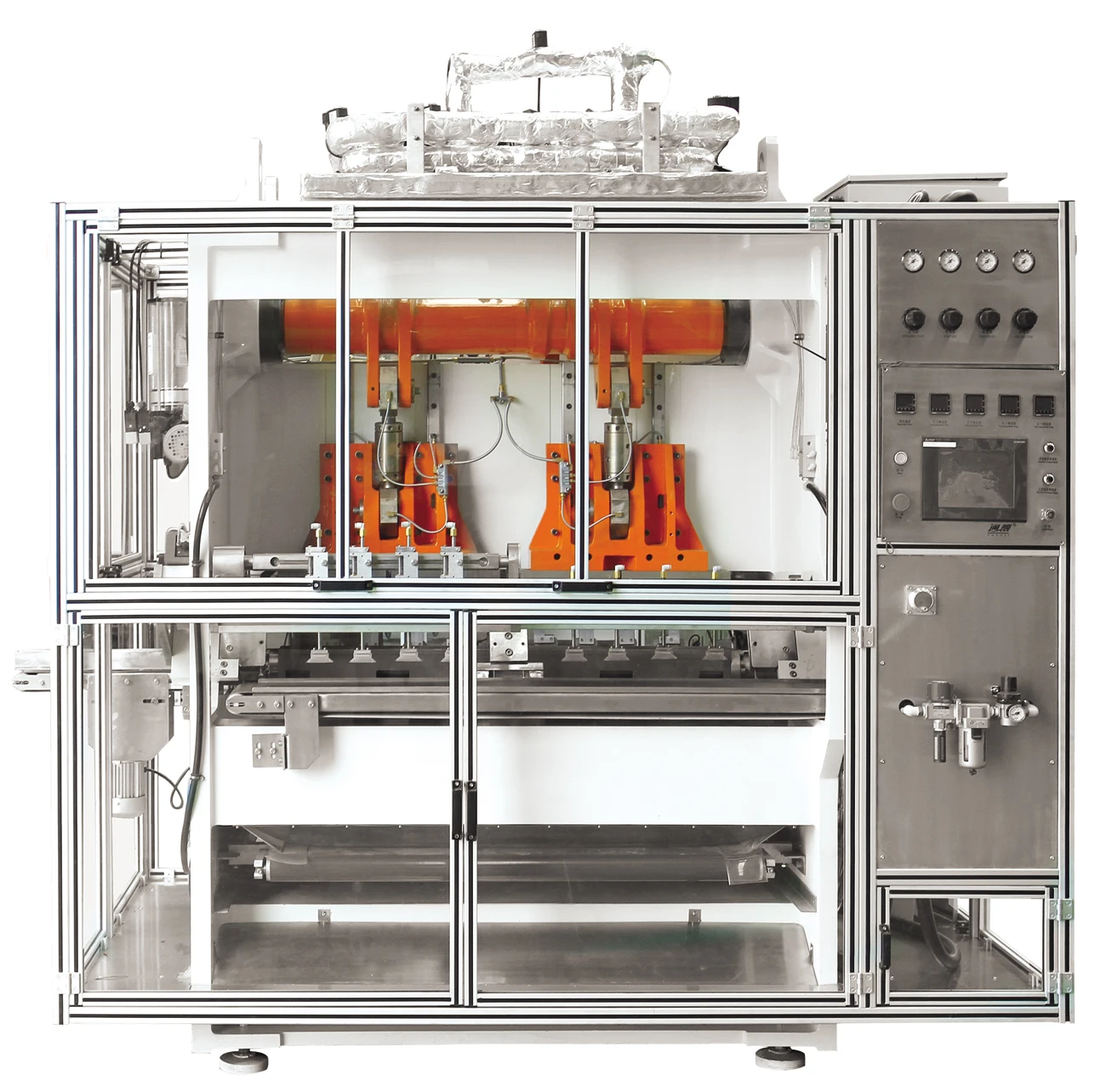

Stamper
This machine is the downstream soap shape forming machine in the soap production line. This machine is re-designed and improved based on the original XD120 stamper. And the friction force of the new linear rails is just the 1/20 of the original cast iron V shape rails.The transmission part has been enhanced to enforce the stamping. And the biggest laundry soap can be od 300g weighr. It has the advantages of smooth running,low vibration and noise,high productivity and long working life.The speed can be adjusted according to upstream ploddder output speed and bar weight.
Our Company

As P&G's global strategic partner and appointed supplier for soap, toothpaste and packaging machinery, we've been serving P&G's factories world-wide.

Meanwhile, we've set up the global sales and after-sales network, serving more than 700 customers in more than 50 countries with quality machinery, including of Unilever, Reckitt Benckiser, Wilmar, Colgate, NICE, EVYAP, etc.

Our company has been awarded as national new high-tech enterprise by the government with 36 technical patents, classified as best credit rating of AAA, certificated by ISO9001: 2008, and got the CE and UL certification for the products with C3+ safety standards. And we have long-term tight cooperation relationship with some machinery manufactures in Italy, Germany and UK to continuously innovate and improve.
