Automatic green bar solid laundry soap making machine from soap noodles

FOB Reference Price:Get Latest Price
$82,000.00 - $440,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Product Type:
Soap
Place of Origin:
Jiangsu, China
Brand Name:
Tongji
After-sales Service Provided:
Field installation, commissioning and training
Warranty:
1 Year
Machine Type:
Fully Automatic Soap Production Line
Application:
Transparent Laundry / Toilet Soap
Capacity:
300kg/h-5000kg/h
Material:
Stainless Steel 304
Packaging & Delivery
Packaging Details
Standard wooden case
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Video Description
Product Description

Main Machines List

No
Machine
Optional
Z1
XZJ250 Mixer
XZJ50  XZJ100  XZJ450  NHJ50 NHJ100  NHJ250 NHJ450 NHJ750
Z2
S405P Three Roll Mill
S150 S260  S405AP;  Diagnal Roll Mill XS260 XS440A XS440
Z3
S405P Three Roll Mill
S150 S260 S405AP; Diagnal Roll Mill XS260 XS440A XS440
Z4
XCT1000 Duplex Plodder
XCT300, XCT500,XCT1000,XCT2000, XCT3000, XCT4000
Z5
XQK/G300 Embossing & Cutting Machine
XQK/G300, XQK/SG300, XQK/SSG300
Z6
XLD200 Stamper XLD200
XLD280, XLD400, XLD480
Conveyors
Platform and Utilities
F1
Steel Operation Platform
F2
1m3/m Air Compressor
F3
Plodder Vacuum Pump U4.40
F4
Stamper Vacuum Pump KVT3.60
F5
S400-WLH High Temperature Chiller S400-WLH
F6
S200-WL Low Temperature Chiller S200-WL
Moulds
M1
Mould for Embossing Cutter
M2
Mould for XLD200 Stamper XLD200

Part 2: Machine Description.

 Main Machines: Z1: Mixer/ Amalgamator

Amalgamator/Mixer

 TSingle shaft two blade type paddle,driven by the motor through the gear box and rotates continuously to mix soap noodles, flakes and liquid or solid addtives.

Two "Sigma" mixing blades are cpimter rotatomg and different speedsto help to fully mix the materials.

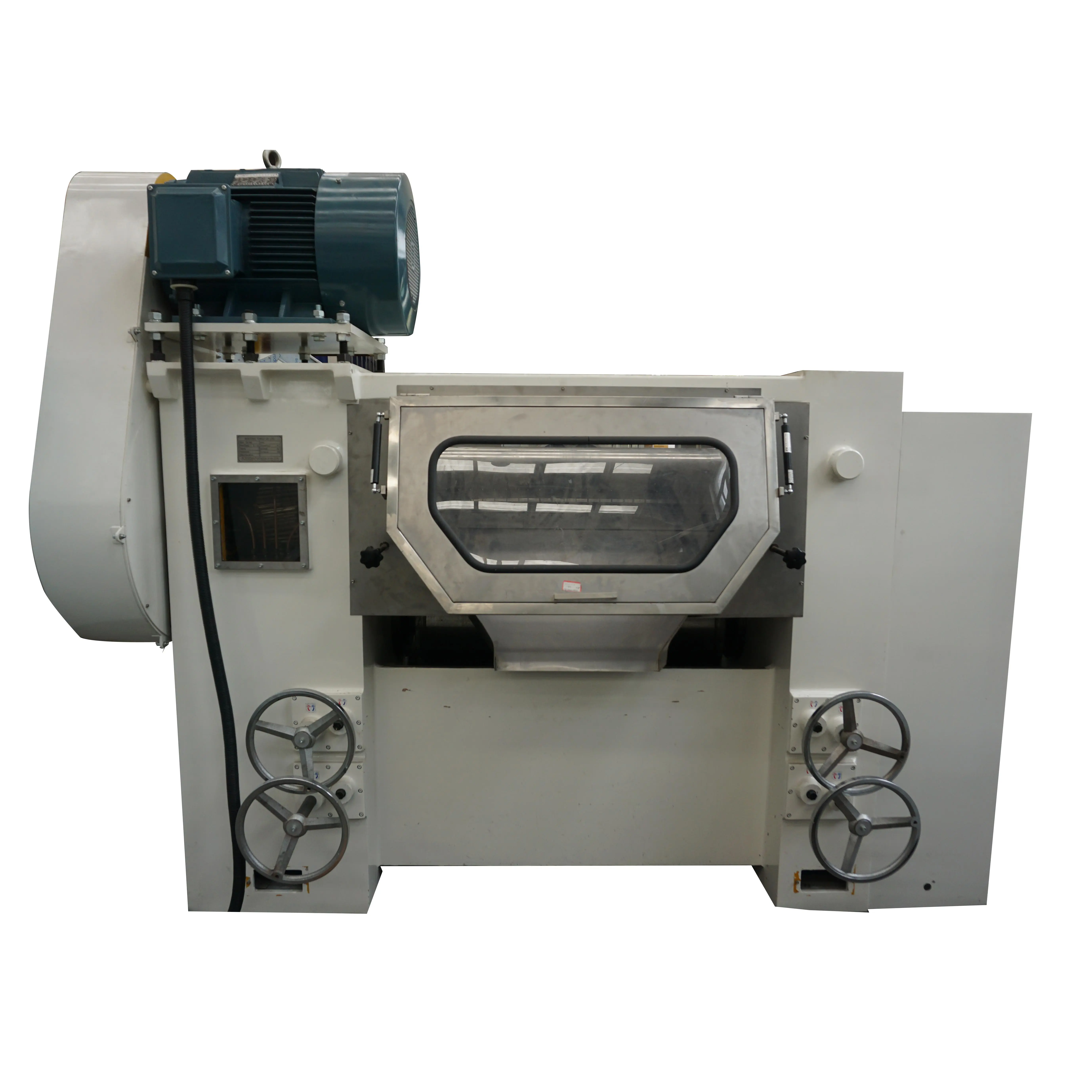

Z2 and Z3.  Three Roll Mill

Horizontal 3 Roll Mill.

The 3 rolls are horizontally mounted, rotating at different speeds.

Diagnal 3 Roll Mill.

The 3 rolls are mounted diagnally, cooling effect is enhanced by more soap contact area with the rolls compared with horizontal type

Z4.  Duplex Plodder

Duplex Single Worm Vacuum plodder.

Duplex Twin Worm Vacuum Plodder.

2 stages and each stage has double screws which has large output capacity.

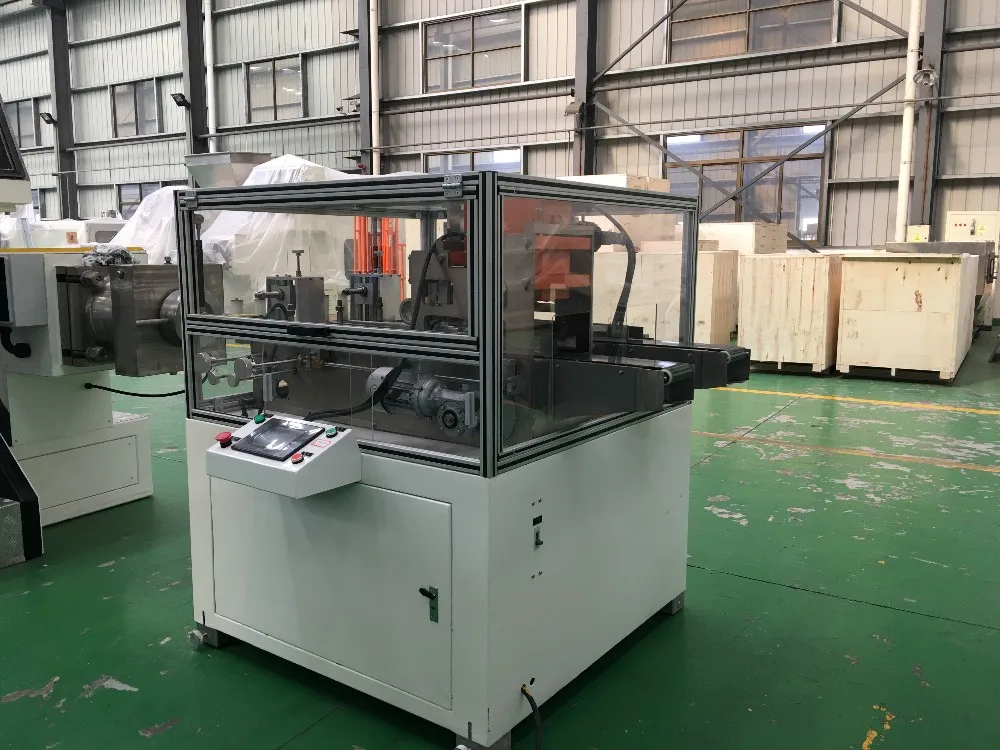

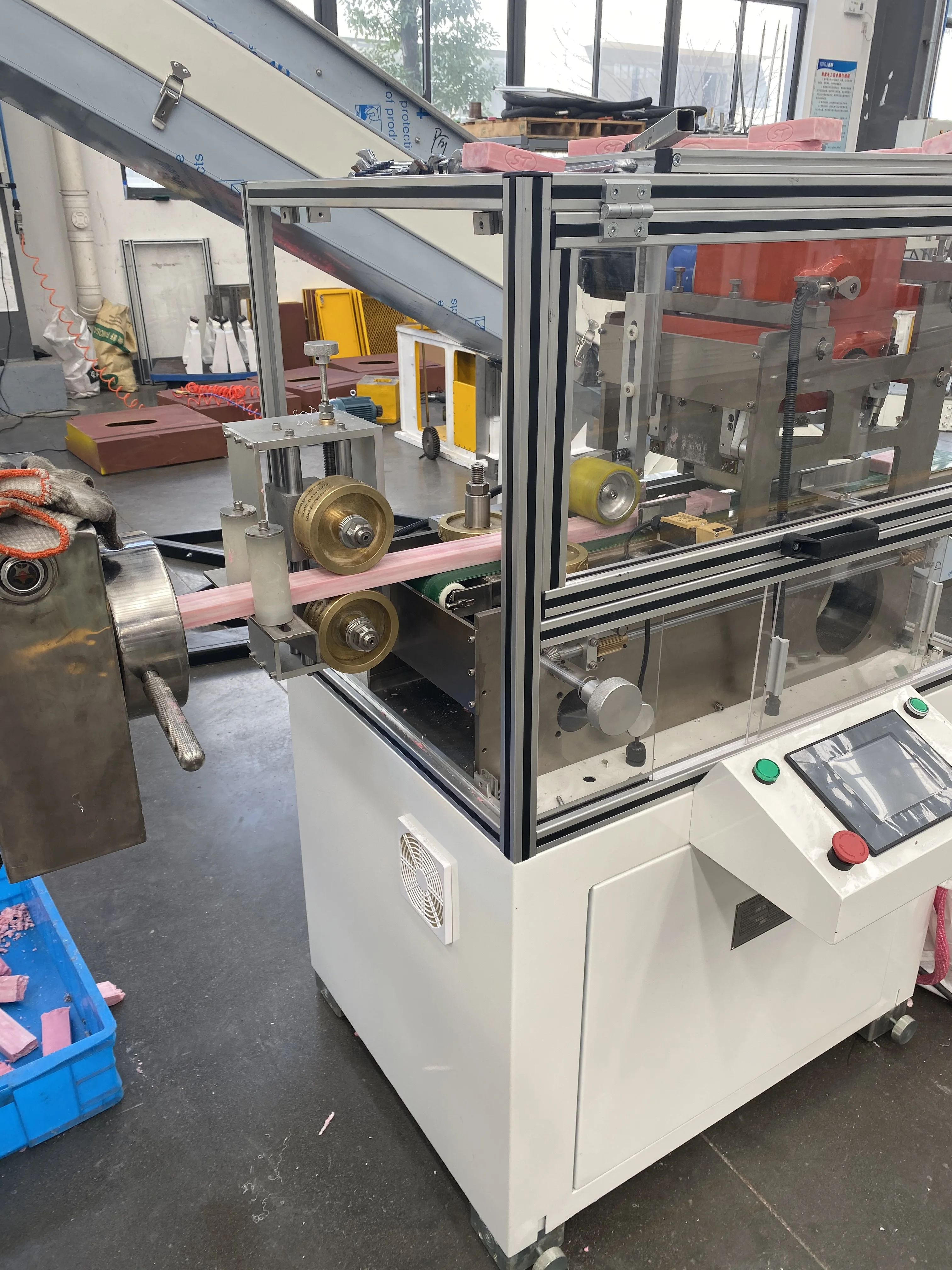

Z5.  Embossing & Cutting Machine

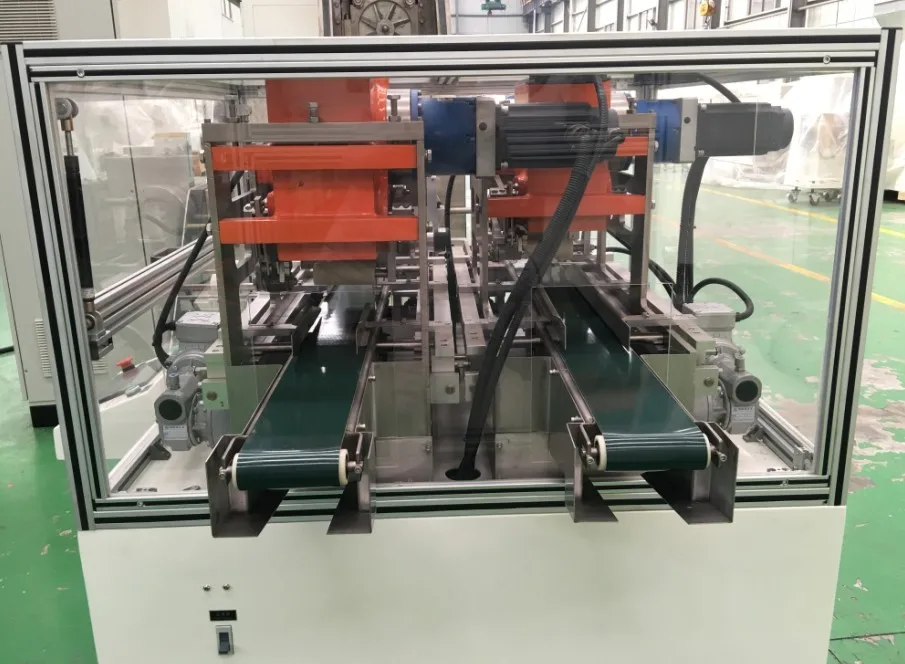

Z6. Stamper

The biggest laundry soap can be of 300g weight.



 Mould:


M1. Mould for Embossing Cutter

M2. Mould for XLD200 Stamper

Our Company

1, As P&G's global strategic partner and appointed supplier for soap, toothpaste and packaging machinery, we've been serving P&G's factories world-wide.
2, Set up the global sales and after-sales network, serving more than 700 customers in more than 50 countries, including of P&G, Unilever, Reckitt Benckiser, Wilmar, Colgate, NICE, EVYAP, WINGS, GIV, NUVO, etc.



Certifications

Classified as best credit rating of AAA, certificated by ISO9001: 2008, got CE and UL with C3+ safety standards.

Our Service

1, Warranty: One year after shipment.

2, After-sales Service:

1) Before installation, the seller will provide the layout drawing, and information of total line power, individual machine power, power connections, water & air input and output position, total water consumption.

2) After the machines arrival in buyer site and put into position, the buyer must connect the water, electricity, air and vacuum gas with the machines, then the seller shall send 3~4 technicians to help start-up the line for production, on-line training and production supervision. The buyer shall pay below service ratings, as well as round-trip transportation from our factory to buyer's factory, the visa application fee, food, transportation and accommodation.
